Mono PERC Solar Module

Good Price Quality Hybrid On Off Grid 200KW 150KW 100KW Solar Energy Storage System For Industrial Use

Home

Hybrid Solar System

Good Price Quality Hybrid On Off Grid 200KW 150KW 100KW Solar Energy Storage System For Industrial Use

Factory Delivery 200kw hybrid solar system

Good Price Quality Hybrid On Off Grid 200KW 150KW 100KW Solar Energy Storage System For Industrial Use

100KW,150KW and 200KW solar hybrid solar system with lithium battery,hybrid inverter

and structure, cable. It can be used for commercial and industrial needs.



  • Payment :

    30% by T/T in advance

  • Product Origin :

    Hefei, China

  • Shipping Port :

    Shanghai or Ningbo

  • Lead Time :

    10-15 working days
Inquiry now

BOM for 100/150/200KW Hybrid Solar Energy System With Lithium Battery Pack



Model
100KW Hybrid Solar System
150KW Hybrid Solar System
200KW Hybrid Solar System
Solar Panel
N type Topcon, 580W*172pcs
N type Topcon, 580W*258pcs
N type Topcon, 580W*345pcs
Hybrid Inverters
50KW*2pcs, with 4 MPPT built-in
50KW*2pcs, with 4 MPPT built-in
50KW*2pcs, with 4 MPPT built-in
Lithium Battery
51.2V 102AH*4pcs
51.2V 102AH*6pcs
51.2V 102AH*8pcs
Grid- Connected Cabinet
SPD, breakers, switchers and etc
DC cables
PV1-F1*4mm2, red and black
AC cables
International standard
Solar Mounting Bracket
Hot-dip galvanized carbon steel or aluminum alloy , for metal/concrete/tiled rooftop
Accessories
Jinko original MC4 connectors, tools and etc

Note:


1. All components are warrantied.

2. Reliable after-sale service during warranty period,replace or repair all parts.

3. Product dimensions and physical appearance in this data sheet are nominal.

4. Pinergy Solar reserves the right to make the product changes from time to time.

5. Installation and training service .

Products Details

Photovoltaic Module

* Tier 1 brand original TW solar /Astronergy/ Jinko/ JA / Longi and etc



* 100% A+ grade with positive tolerance.



* IEC61215/IEC61730

/ISO9001/ISO14001/ISO45001

/MCS/FIDE/ RETIE certifications and etc.



* P type/ N type mono-facial or bifacial available.



* PID-Free, Anti-salt mist corrosion and Anti-Amonia .



* 12 years materials and processing warranty, 25years 80% power output warranty.



Hybrid Inverter-

Higher yields / Safe & Reliable / Smart / User-friendly

*Colorful touch LCD, IP65 protection .



*AC couple to retrofit existing solar system.



*Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel



*Max. charging/discharging current 140A



*6 time periods for battery charging/ discharging.



*Be equipped with RS485/CAN port for battery communication.



Lithium Battery

* 48V /51.2V low voltage, safe

* A grade cells from Gotion high-tech 3.2V 100AH/102AH/104AH or EVE 3.2V 102AH, Top brand manufacturer

* 80% after 6000 cycle times

* Compatible with Deye/Victron/SMA and other famous inverter supplier

* 5 years warranty



Grid-connected Cabinet
* Breaker / SPD/ Stainless steel (outdoor) or plastic ( indoor ) box

* Lightening protection, short-circuit protection, over-current protection

* Earth-leakage protection and anti-islanding protection

* Customized based on actual needs

* 5 years warranty

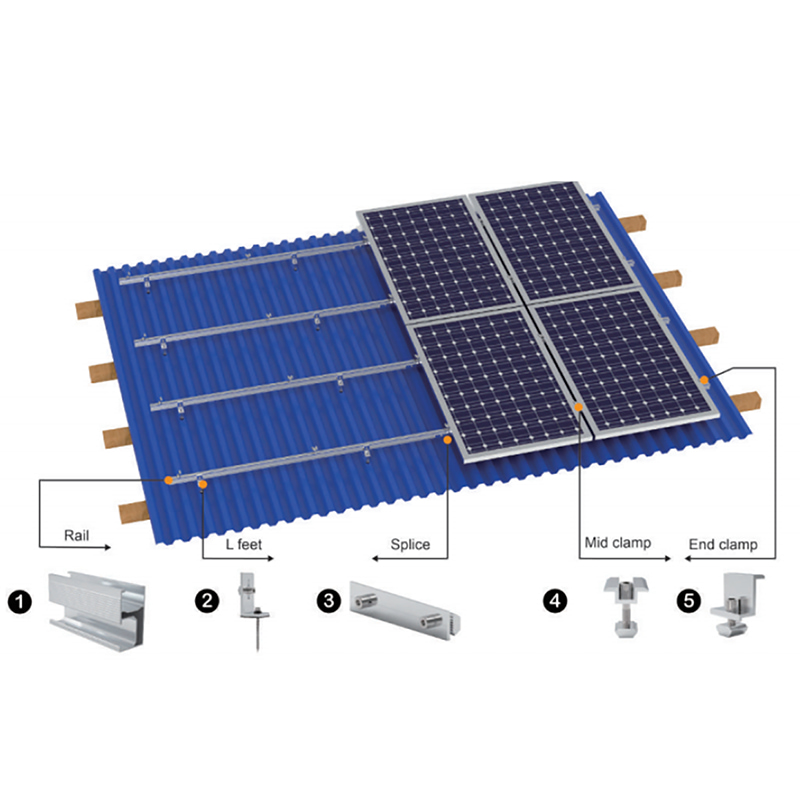

Solar Mounting System

* Pitched tiled/ flat roof mounting/ ground /carport mounted structure


* Mid-clmaping and end-clamping and all accessories.

* Hot-dip galvanized carbon steel or aluminum alloy

* Compatible with all sizes of solar modules

* 10 years warranty



Solar Cable (DC & AC )

* PV1-F 1*4mm2 & PV1-F1*6mm2, red & black

* Tinned copper wire

* AC 0.6/1.0KV DC 1.0KV

* 100m per roll or 200m per roll

* 3 years warranty.

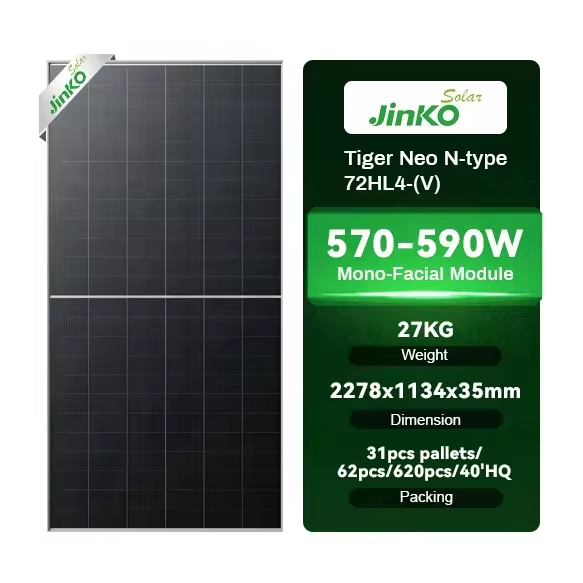

1. Specifications of solar panels-Jinko 580W N type Topcon
Module Type
JKM580N-72HL4
JKM580N-72HL4-V
Test Condition
STC
NOCT
Max. Power. Pmax(W)
580
436
Open Circuit Voltage Voc (Voc/V)
42.37
39.69
Short Circuit Current (Isc/A)
13.69
10.99
Voltage at Max. Power (Vmp/V)
                51.02
48.46
Current at Max. Power (Imp/A)
14.47
11.68
Module Efficiency
22.45%
STC: Standard Test Condition (STC)：Irradiance 1000W/m², Cell Temperature 25℃, AM1.5
Nominal Module Operating Temperature (NOCT)：Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s.

2. Specifications of Deye High-Voltage Hybrid Inverter
- SUN35/40/50K-SG01HP3-EU-AM2
  • #

  • #

  • #

  • #





Technical Datasheet

Model
SUN-35K-SG01HP3-EU-AM2
SUN-40K-SG01HP3-EU-AM2
SUN-50K-SG01HP3-EU-BM4
Battery Input Data

Battery Type
Lead-acid or Lithium-iron
Battery Voltage Range (V)
160~800
Max.Charging Current (A)
50+50
Max.Discharging Current (A)
50+50
Number of Battery Input
2
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
PV Strings Input Data

Max.DC Input Power (W)
45500
52000
65000
Max. DC Input Voltage (V)
1000
Start-up Voltage (V)
180
MPPT Range (V)
150-850
PV Input Current (A)
36+36+36+36
Max. PV ISC (A)
55+55+55+55
No. of MPP Trackers
4
No.of Strings Per MPPT Tracker
2+2+2+2
AC Output Data

Rated AC Output and UPS Power (W)
35000
40000
50000
Max. AC Output Power (W)
38500
44000
55000
AC Output Rated Current (A)
53.1/50.8
60.7/58
75.8/72.5
Max. AC Output Current (A)
58.4/55.8
66.7/63.8
83.4/79.7
Max. Continuous AC Passthrough (A)
200
Peak Power(off grid)
1.5 time of rated power, 10 S
Power Factor Adjustment Range
0.8 leading to 0.8 lagging.
Rated Input/Output Voltage/Range(V)
220/380, 230/400 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range
50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Grid Connection Form
3L+N+PE
Total Harmonics Current Distortion (THDi)
<3% (of nominal power)
DC Current Injection
<0.5% 1n
Efficiency
Max.Efficiency
97.60%
Euro Efficiency
97.00%
MPPT Efficiency
99.90%
Protection
Integrated
Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge Protection, Arc Fault Circuit Interruption (AFCI optional)
Output Over Voltage Protection
DC Type II / AC Type Ⅲ
Certifications and Standards
Grid Regulation
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC / Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃)
-40-60℃, >45℃ Derating
Cooling
Smart Cooling
Noise (dB)
≤65 dB
Communication with BMS
CAN
Weight (kg)
80
Cabinet Size (WxHxD mm)
408×638×237 (Excluding Connectors and Brackets)
Protection Degree
IP65
Installation Style
Wall-mounted
Warranty
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy


3. Specifications of Lithium Battery
--Wall-mounted Energy Storage Battery
Product
Nominal Voltage
Nominal Capacity
Dimension
Weight
51.2V100AH
DC51.2V
100AH
482*463*178mm
48.2KG
Nominal Voltage (V)
51.2
Nominal Capacity (WH)
5120
Usable Capacity (WH)
4608
Discharge Voltage (V)
46
Charge Voltage (V)
56
Recommend Charge/ Discharge Current (A)
50
Max. Charge/ Discharge Current(A)
100(3s)
Communicaiton
RS485/CAN/Bluetooth
Working Temperature
0-40℃
Storage Temperature
-20-70℃
Humidity
10%-80%
Certification
CE/ IEC/ UN38.3/ MSDS
Design Service Life
10 years+
Cycle Life
>6000@90%DOD(25±5℃)
Electricial Design Redundancy
>20%

Package and Delivery

  • #

  • #

  • #




  • #

  • #

  • #




Project





Exhibition

  • #
    Brazil in 2023
  • #
    Malaysia in 2023
  • #
    Canton Fair in 2022
