Mono PERC Solar Module

Factory Price 200KW 150KW 100KW Hybrid Solar Energy Storage System For Commercial Use

Home

Hybrid Solar System

Factory Price 200KW 150KW 100KW Hybrid Solar Energy Storage System For Commercial Use

200kw hybrid solar system

Factory Price 200KW 150KW 100KW Hybrid Solar Energy Storage System For Commercial Use

100KW,150KW and 200KW solar hybrid solar system with lithium battery,hybrid inverter

and structure, cable. It can be used for commercial and industrial needs.



  • Payment :

    30% by T/T in advance

  • Product Origin :

    Hefei, China

  • Shipping Port :

    Shanghai or Ningbo

  • Lead Time :

    10-15 working days
Inquiry now

BOM for 100/150/200KW Hybrid Solar Energy System With Lithium Battery Pack

Model
100KW Hybrid Solar System
150KW Hybrid Solar System
200KW Hybrid Solar System
Solar Panel
N type Topcon, 580W*172pcs
N type Topcon, 580W*258pcs
N type Topcon, 580W*345pcs
Hybrid Inverters
100KW*1pcs, split phase, with MPPT built-in
150KW*1pcs, split phase, with MPPT built-in
50KW*4pcs, split phase, with MPPT built-in
Lithium Battery
51.2V 100AH*40pcs
51.2V 100AH*60pcs
51.2V 100AH*80pcs
Grid- Connected Cabinet
SPD, breakers, switchers and etc
DC cables
PV1-F1*4mm2, red and black
AC cables
International standard
Solar Mounting Bracket
Hot-dip galvanized carbon steel or aluminum alloy , for metal/concrete/tiled rooftop
Accessories
Jinko original MC4 connectors, tools and etc

Note:


1. All components are warrantied.

2. Reliable after-sale service during warranty period,replace or repair all parts.

3. Product dimensions and physical appearance in this data sheet are nominal.

4. Pinergy Solar reserves the right to make the product changes from time to time.

5. Installation and training service .

Products Details

Photovoltaic Module

* Tier 1 brand original TW solar /Astronergy/ Jinko/ JA / Longi and etc



* 100% A+ grade with positive tolerance.



* IEC61215/IEC61730

/ISO9001/ISO14001/ISO45001

/MCS/FIDE/ RETIE certifications and etc.



* P type/ N type mono-facial or bifacial available.



* PID-Free, Anti-salt mist corrosion and Anti-Amonia .



* 12 years materials and processing warranty, 25years 80% power output warranty.



Hybrid Inverter-

Higher yields / Safe & Reliable / Smart / User-friendly

*Colorful touch LCD, IP65 protection .



*AC couple to retrofit existing solar system.



*Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel



*Max. charging/discharging current 140A



*6 time periods for battery charging/ discharging.



*Be equipped with RS485/CAN port for battery communication.



Lithium Battery

* 48V /51.2V low voltage, safe

* A grade cells from Gotion high-tech 3.2V 100AH/102AH/104AH or EVE 3.2V 102AH, Top brand manufacturer

* 80% after 6000 cycle times

* Compatible with Deye/Victron/SMA and other famous inverter supplier

* 5 years warranty

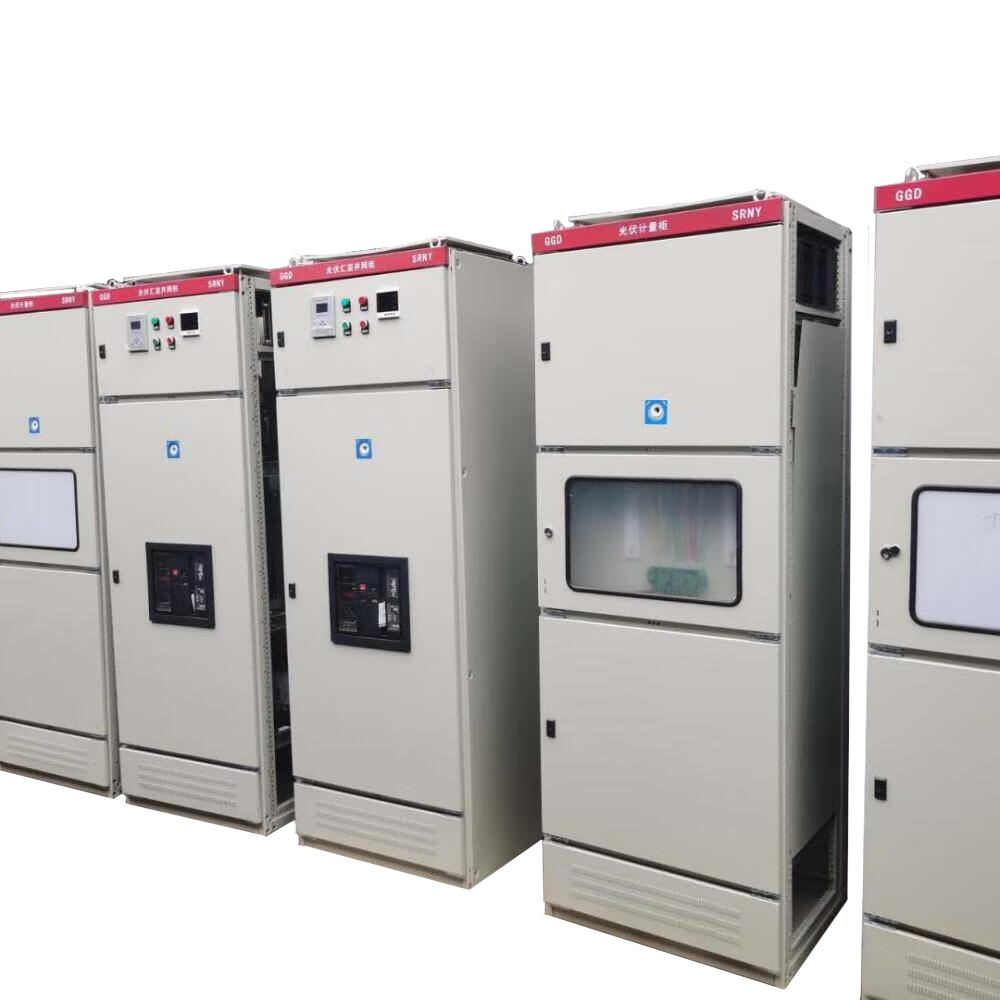

Grid-connected Cabinet
* Breaker / SPD/ Stainless steel (outdoor) or plastic ( indoor ) box

* Lightening protection, short-circuit protection, over-current protection

* Earth-leakage protection and anti-islanding protection

* Customized based on actual needs

* 5 years warranty

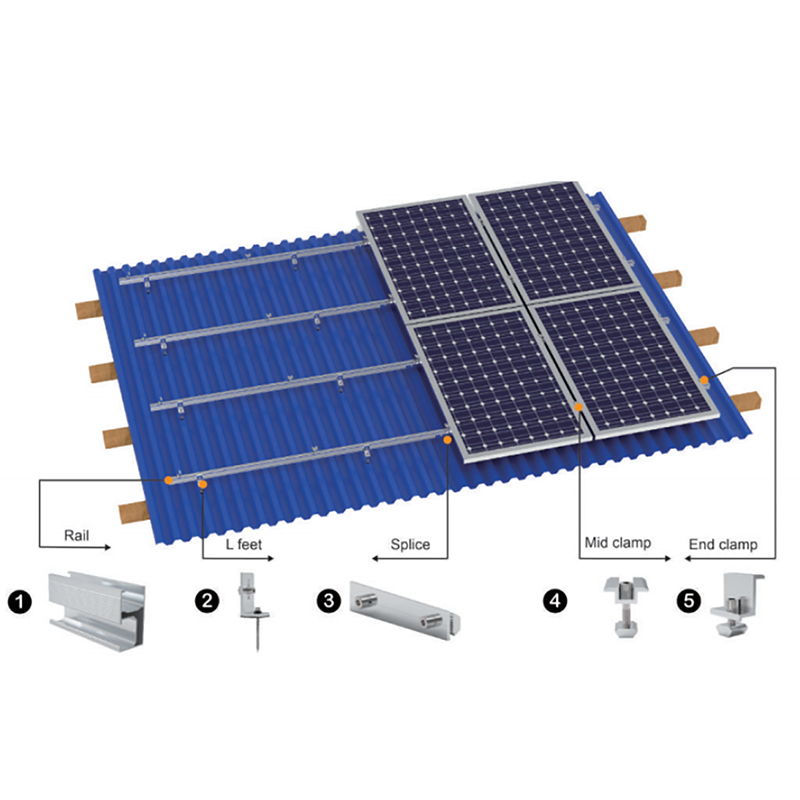

Solar Mounting System

* Pitched tiled/ flat roof mounting/ ground /carport mounted structure


* Mid-clmaping and end-clamping and all accessories.

* Hot-dip galvanized carbon steel or aluminum alloy

* Compatible with all sizes of solar modules

* 10 years warranty



Solar Cable (DC & AC )

* PV1-F 1*4mm2 & PV1-F1*6mm2, red & black

* Tinned copper wire

* AC 0.6/1.0KV DC 1.0KV

* 100m per roll or 200m per roll

* 3 years warranty.



1. Specifications of solar panels-Jinko 580W N type Topcon

Module Type
JKM580N-72HL4-BDV
JKM585N-72HL4-BDV
Test Condition
STC
NOCT
STC
NOCT
Max. Power. Pmax(W)
580
437
585
441
Open Circuit Voltage Voc (Voc/V)
43.88
40.89
44.02
41.05
Short Circuit Current (Isc/A)
13.22
10.69
13.29
10.74
Voltage at Max. Power (Vmp/V)
52.50
39.90
52.70
40.05
Current at Max. Power (Imp/A)
13.95
11.26
14.01
11.31
Module Efficiency
22.45%
22.65%



STC: Standard Test Condition (STC)：Irradiance 1000W/m², Cell Temperature 25℃, AM1.5
Nominal Module Operating Temperature (NOCT)：Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s.

2. Specifications of ATESS High-Voltage Hybrid Inverter

Model
HPS50-US
HPS100-US
HPS150-US
AC (on-grid)



Apparent power
55kVA
110kVA
165kVA
Rated power
190~240V Wye / High-leg
Delta with split phase(Opt)
190~240V Wye / High-leg
Delta with split phase(Opt)
190~240V Wye / High-leg Delta with split phase(Opt)
Rated current
152~120A
304~241A
456~361A
Voltage range
190-240V
Rated frequency
50/60H
Frequency range
45~55/55~65Hz
THDI
<3%
PF
0.8 lagging~0.8 leading
AC connection
3/N/PE Wye / 3/N/PE Delta(Opt)
Appearance power
50kVA
100kVA
150kVA
AC(off-grid)



Apparent power
55kVA
110kVA
165kVA
Rated power
50kW
100kW
150kW
Rated voltage
190~240V Wye / High-leg
Delta with split phase(Opt)
190~240V Wye / High-leg
Delta with split phase(Opt)
190~240V Wye / High-leg
Delta with split phase(Opt)
Rated current
152-120A
304-241A
456-361A
THDU
≤2% linear
≤2% linear
≤2% linear
Rated frequency
50/60Hz
THDU
≤2% linear
Rated frequency
50/60Hz
Overload capability
110%-10 mins 120%-1 min
Max. PV open-circuit voltage
1000V DC
1000V DC
1000V DC
Max. PV power
75kWp
150kWp
225kWp
PV MPPT voltage range
480V-800V DC
480V-800V DC
480V-800V DC
PV MPPT voltage range
480V-800V DC
400V-600V
400V-600V
Max. charge power
75kW
150kW
225kW
Max. discharge power
55kW
110kW
165kW
Max. charge current
150A
300A
450A
Max. discharge current
138A
275A
413A
General Information
Protection degree
IP20
IP20
IP20
Noise emission
<65dB(A)@1m
<65dB(A)@1m
<65dB(A)@1m
Operating temperature
-25 °C~+55 °C
-25 °C~+55 °C
-25 °C~+55 °C
Cooling method
Forced-air
Forced-air
Forced-air
Relative humidity
0-95% non-condensing
0-95% non-condensing
0-95% non-condensing
Max. altitude
6000m (derate over 3000m)
6000m (derate over 3000m)
6000m (derate over 3000m)
Dimension (W/H/D)
950/1860/750mm
1200/1900/800mm
1200/1900/800mm
Weight
590kg
923kg
1200kg
Build-in transformer
Yes
Lightning protection
Type II
Transfer between on/off grid
Automatic≤10ms
Standby consumption
<30W
Communication
Display
Touch screen


Communication
RS485/CAN


Certificate
UL1741 , CSA-C22.2
3. Specifications of Lithium Battery
--Wall-mounted Energy Storage Battery
Model
MD48-50-2U
MD48-100-3U
General
Nominal Energy
2.4 kWh
5.12 kWh
Usable Energy
2.4 kWh
5.12 kWh
Scalability
Max. 15 in parallel ( 36kWh )
Max. 15 in parallel ( 76.8kWh )
Dimension (W x H x D)
440 x 410 x 88.5 mm
440 x 420 x 133 mm
Weight
~24 kg
~44 kg
Design Life
10 Years
10 Years
Electrical
Nominal Voltage
48 V
51.2 V
Operating Voltage Range
40.5 ~ 53.5 V
43.2 ~ 56.8 V
Charge /
Discharge Current ( Recommend )
25A / 25A
50A / 50A
Charge /
Discharge Current (Max)
50A / 50A
100A / 100A
Operation
Charge Temperature
0 ~ 50℃
Discharge Temperature
-10 ~ 50℃
Storage Temperature
-20 ~ 45℃
Humidity
5% ~ 95% RH ( No Condensation)
Altitude
≤4000m
Ingress Protection
IP20
Communication Interface
CAN, RS485 ( Optional WIFI, BLE)
Certification
Ul1973, UN38.3, EN 61000-6-1, EN 61000-6-3, IEC62619
Compatible Inverter
BST/Deye/GOODWE/Growatt/Sofar/Solis/Victron/Voltronic/ATESS
