Complete Set Solar Energy System 10KW 12KW Hybrid System

8kw hybrid solar system

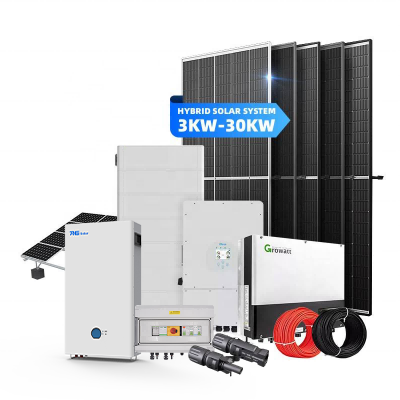

Complete Set Solar Energy System 10KW 12KW Hybrid System

10KW 12KW system, solar hybrid solar system with lithium battery,hybrid inverter and structure, cable. It

can be used for residential and home.



  • Payment :

    30% by T/T in advance

  • Product Origin :

    Hefei, China

  • Shipping Port :

    Shanghai or Ningbo

  • Lead Time :

    10-15 working days
Inquiry now
1. All components are warrantied.

2. Reliable after-sale service during warranty period,replace or repair all parts.

3. Product dimensions and physical appearance in this data sheet are nominal.

4. Pinergy Solar reserves the right to make the product changes from time to time.

5. Installation and training service .

Products Details

Photovoltaic Module

* 550W, A grade mono perc solar panel, A grade .  Size: 2279*1134*35. IP 68 junction box . Packaged with wooden box.

Jinko/Longi/JA/Trina/Canadian/PNG SOLAR and etc



* P type/ N type mono-facial or bifacial available.



* PID-Free, Anti-salt mist corrosion and Anti-Amonia .



* 12 years materials and processing warranty, 25years 80% power output warranty.



Hybrid Inverter-

10KW, Deye brand,  low voltage, 3-phase, 2MPPT built-in.



*AC couple to retrofit existing solar system.



*Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel



*Max. charging/discharging current 140A



*6 time periods for battery charging/ discharging.



*Be equipped with RS485/CAN port for battery communication.



Lithium Battery

* 48V 100AH/ 102AH, 0.5C low voltage.

* Gotion High-Tech/EVE brand/Kogger Higee, new A grade cells. BMS compatible with Deye inverter.

* 80% after 6000 cycle times

* Compatible with Deye/Victron/SMA and other famous inverter supplier

* 5 years warranty



Grid-connected Cabinet
* Breaker / SPD/ Stainless steel (outdoor) or plastic ( indoor ) box

* Lightening protection, short-circuit protection, over-current protection

* Earth-leakage protection and anti-islanding protection

* Customized based on actual needs

* 5years warranty



Solar Mounting System

* Pitched tiled/ flat roof mounting/ ground /carport mounted structure


* Mid-clmaping and end-clamping and all accessories.

* Hot-dip galvanized carbon steel or aluminum alloy

* Compatible with all sizes of solar modules

* 10 years warranty



Solar Cable (DC & AC )

* PV1-F 1*4mm2 & PV1-F1*6mm2, red & black

* Tinned copper wire

* AC 0.6/1.0KV DC 1.0KV

* 100m per roll or 200m per roll

* 3 years warranty.



1. Specifications of solar panels-Jinko 580W N type Topcon
Module Type
JKM580N-72HL4
JKM580N-72HL4-V
Test Condition
STC
NOCT
Max. Power. Pmax(W)
580
436
Open Circuit Voltage Voc (Voc/V)
42.37
39.69
Short Circuit Current (Isc/A)
13.69
10.99
Voltage at Max. Power (Vmp/V)
                51.02
48.46
Current at Max. Power (Imp/A)
14.47
11.68
Module Efficiency
22.45%
STC: Standard Test Condition (STC)：Irradiance 1000W/m², Cell Temperature 25℃, AM1.5
Nominal Module Operating Temperature (NOCT)：Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s.

2. Specifications of Deye High-Voltage Hybrid Inverter
- SUN-10/12K-SG04LP3-EU
  • #

  • #

  • #

  • #





Model
SUN-5K-SG04LP3-EU
SUN-6K-SG04LP3-EU
SUN-8K-SG04LP3-EU
SUN-10K-SG04LP3-EU
SUN-12K-SG04LP3-EU
Battery Input Data
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range (V)
40-60
Max. Charging Current (A)
120
150
190
210
240
Max. Discharging Current (A)
120
150
190
210
240
External Temperature Sensor
Yes
Charging Curve
3 Stages / Equalization
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
PV String Input Data
PV String Input Data
6500
7800
10400
13000
15600
Rated PV Input Voltage (V)
550 (160-800)
Start-up Voltage (V)
160
MPPT Voltage Range (V)
200-650
Full Load DC Voltage Range (V)
350-650
PV Input Current (A)
13+13
26+13
Max. PV I (A)
17+17
34+17
No.of MPP Trackers
2
No.of Strings per MPP Tracker
1+1
2+1
AC Output Data
Rated AC Output Active Power (W)
5000
6000
8000
10000
12000
Max AC Output Active Power (W)
5500
6600
8800
11000
13200
AC Output Rated Current (A)
7.6/7.2
9.1/8.7
12.1/11.6
15.2/14.5
18.2/17.4
Max AC Output Current (A)
8.4/8
10/9.6
13.4/12.8
16.7/15.9
20/19.1
Max. Three-phase Unbalanced Output Current (A)
11.4/10.9
13.6/13
18.2/17.4
22.7/21.7
27.3/26.1
Max Output short circuit current (A)
75
Max. Continuous AC Passthrough (A)
45
Peak Power (off grid)
2 time of rated power, 10 S
Power Factor
0.8 leading to 0.8 lagging
Output Frequency and Voltage
50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type
Three Phase
Total Harmonic Distortion (THD)
<3% (of nominal power)
DC Current Injection
<0.5% In
Efficiency
Max. Efficiency
97.60%
Euro Efficiency
97.00%
MPPT Efficiency
99.90%
Protection
Integrated
Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection
Surge Protection
DC Type III / AC Type III
Over Voltage Category
DC Type II/AC Type III
Certifications and Standards
Grid Regulation
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1,
G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃)
-40-60℃, >45℃ derating
Cooling
Smart Cooling
Noise (dB)
≤45 dB
Communication with BMS
RS485; CAN
Weight (kg)
33.6
Size (mm)
422W x 702H x281D
Protection Degree
IP65
Installation Style
Wall-mounted
Warranty
5 Years (10 Years Optional)


3. Specifications of Lithium Battery
--Wall-mounted Energy Storage Battery
Model
PNG-W5
PNG-W10
Capacity
5.2KWH
10.5KWH
Cell Capacity
102AH
204AH
Max. charging/discharging current
100A
100A
BMS
1P16s
1P16s
Net Weight
48KGS
90KGS
Dimension (L*W*H)
695*440*155mm
850*530*140mm
Norminal Voltage
51.2V
51.2V
Working Voltage
44.8V~57.6V
Increasable (parallel connection )
Up to 15packs to be connected in parallel
Cycle Times (0.5C 25℃)
6000 times
Warranty
5years
Storage Temperature
-20℃ ~45℃
Operation Temperature
Charging  0℃ ~45℃
Discharging -20℃ ~45℃
Protection Class
IP26
Communication
RS232, RS485, CAN (Capatible with most famous brands in the markets)
