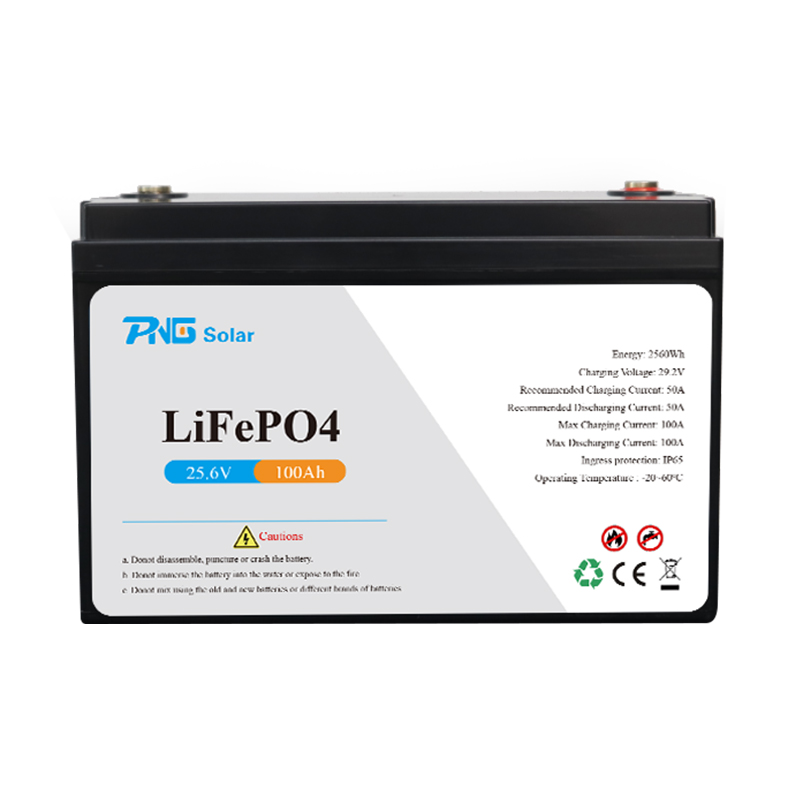

25.6V 100Ah 200Ah Lithium Battery Pack with A grade EVE battery cells. Household use.
Payment :
30% by T/T in advanceShipping Port :
Shanghai or NingboLead Time :
10-15 working days after paymentsAdvantages:
Higher Safe Performance and Longer Cycle Life
With breaker and fuse
High Scalability
Scalable
Wide Compatibility
Compatible with most of the leading inverter brands
Advanced Battery Management System
Smart BMS from famous brands, to monitor the battery's temperature, current, prevent over-current
and etc. Take good control of the charging and discharging of battery to max.the lifespan
Environmentally Friendly
From reduced carbon emissions to increased energy savings, we've got you covered. It will help reduce
your carbon footprint by storing energy from renewable sources like solar power and wind power
| Model | PNG-E24100-LV | PNG-E24200-LV |
| Nominal Voltage | 25.6V | |
| Nominal Capacity | 100Ah | 200Ah |
| Nominal Energy | 2.56kWh | 5.12kWh |
| Output Voltage Range | 21.6-29.2V | |
| Charge Voltage Range | 25.6-29.2V | |
| Discharge Cut-off Voltage | 21.6V | |
| Max.Charge/ Discharge Current | 1C, 100A | 1C,200A |
| Recommend Charge Current(Continuous) | 0.5C,50A | 0.5C,100A |
| Scalability | Up to 15pcs connected in parallel | |
| Depth of Discharge (DOD) | 80%/25℃/0.5C,SOC≥80% | |
| Display Type | LCD Screen (Optional) | |
| Protection Level | IP65 | |
| Working Temperature Range | Charge:0℃~+55℃.Discharge:-20℃~+55℃ | |
| Storage Temperature Range | -10℃~+30℃ | |
| Humidity | 5%~95% RH | |
| Cycle Life | ≥4000cycles | |
| Protection | Built-in smart BMS,Breaker,Fuse | |
| Communication Port | CAN/RS485 | |
| Warranty | 3years | |
| Installation | Floor-Mounted | |
| Cooling Mode | Air-cooling | |
| Dimension(L*W*H) | 480*165*240mm | 635*240*225mm |
| Weight | 30kgs | 40kgs |
FAQ:
1: Can the product be shipped to my area?
We export to most countries/regions (Centre/ South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.
2: How can I make payment?
100% T/T or maximum we can accept 30% T/T in advance and 70% T/T upon goods ready before shipment.
