PNG Solar 405w 410w 420w solar module, 182mm 108cells monocrystalline half-cell PV modules, black solar panel, photovoltaic module. Widely used for residential and commercial at home and abroad .
It can be customized with MOQ: 40HQ container.
Payment :
30% by T/T in advanceShipping Port :
Shanghai or NingboLead Time :
10-15 working days after paymentAdvantages:
Not only are these solar panels visually striking, but they also boast exceptional performance. With an impressive power output of 410W, they harness the unlimited power of sunlight to generate an abundant supply of clean and renewable energy. Experience unmatched efficiency as our panels convert more sunlight into electricity, maximizing your energy production and minimizing your reliance on traditional energy sources.
|
Module Type |
PNGMH54-B8-395 |
PNGMH54-B8-400 |
PNGMH54-B8-405 |
PNGMH54-B8-410 |
PNGMH54-B8-415 |
PNGMH54-B8-420 |
||||||
|
Testing Condition |
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
|
Max. Power (Pmax/W) |
395 |
297 |
400 |
301 |
405 |
305 |
410 |
309 |
415 |
313 |
420 |
317 |
|
Voltage at Max. Power (Vmp/V) |
30.9 |
29.0 |
31.1 |
29.2 |
31.2 |
29.4 |
31.4 |
29.6 |
31.6 |
29.8 |
31.8 |
30.0 |
|
Current at Max. Power (Imp/A) |
12.81 |
10.23 |
12.88 |
10.31 |
12.97 |
10.38 |
13.05 |
10.45 |
13.14 |
10.52 |
13.19 |
10.59 |
|
Open Circuit Voltage (Voc/V) |
37.0 |
34.8 |
37.1 |
34.9 |
37.2 |
35.1 |
37.4 |
35.3 |
37.6 |
37.8 |
37.8 |
35.7 |
|
Short Circuit Current (Isc/A) |
13.68 |
10.93 |
13.77 |
11.01 |
13.86 |
11.10 |
13.95 |
11.17 |
14.04 |
11.26 |
14.13 |
11.34 |
|
Module efficiency (%) |
20.25% |
20.50% |
20.76% |
21.01% |
21.25% |
21.01% |
||||||
|
Power Tolerance (W) |
0~+5
|
|||||||||||

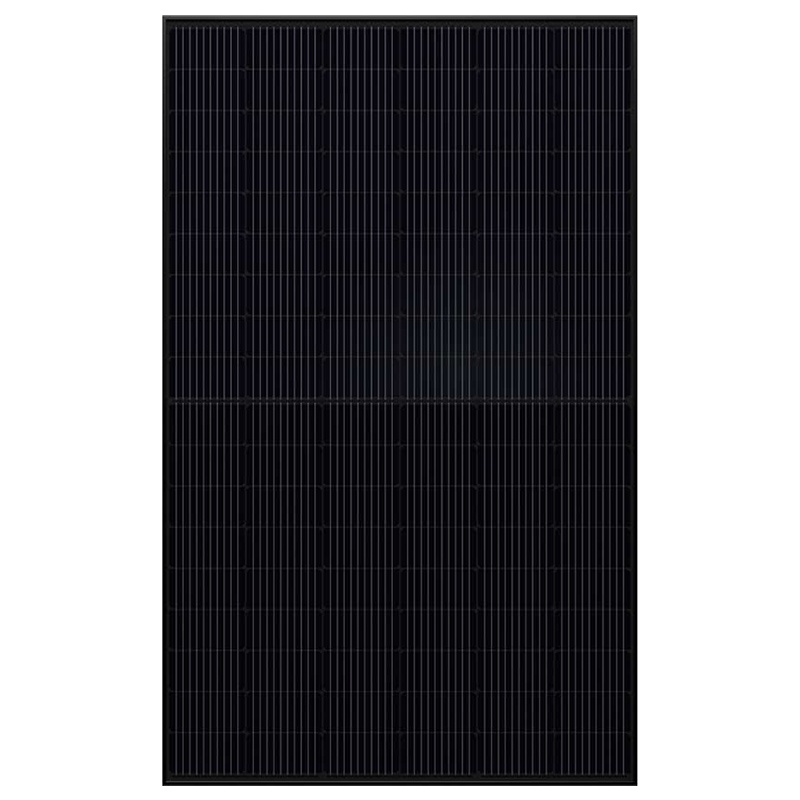

PNG solar system fully black pv module
Standard Test Condition (STC)：Irradiance 1000W/m², Cell Temperature 25℃, AM1.5
Nominal Module Operating Temperature (NOCT)：Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s
|
Cell Type |
MBB MONO 182x91mm |
|
No. of Cells |
108 (6x18) |
|
Dimension |
1722x1134x30mm |
|
Weight |
21.5kg |
|
Glass |
3.2mm, Low Iron Tempered Glass |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP68, 3 diodes |
|
Output Cables |
4mm², Length 300mm or customized |
|
Connector type |
MC4 compatible |
|
NOCT Temperature |
44 C ±2 C |
|
Temperature Coefficient (Pmax) |
-0.36%/C |
|
Temperature Coefficient (Voc) |
-0.28%/C |
|
Temperature Coefficient (Isc) |
0.05%/C |
|
Maximum system voltage (IEC) |
1500V DC |
|
Snow / Wind |
5400Pa / 2400Pa |
|
Operating Temperature |
-40℃ ~ +85℃ |
|
Maximum series fuse rating |
25A |
|
Per Pallet |
36 pcs |
|
Per 40' HQ Container |
936 pcs |
FAQ:
1: Are you the factory?
Yes, we can offer OEM and ODM, too.
2: What about the lead time?
10~15 working days for 1MW. around 2000pcs production capacity per day .
